Endless volcanic eruptions like Jupiter’s Io for early Earth?
Recent models of the very early Earth showed that the planet could have been cooling rapidly by heat-pipe volcanism (just like Jupiter’s moon Io). Image shows the May 1954 eruption of Kilauea Volcano in Hawaii. Credit: J.P. Eaton, May 31, 1954 [Public domain], via Wikicommons.
Cratons are anomalously-strong regions of the continents that have largely resisted tectonic forces for billions of years. How such strong zones could be forged in a hot, low-viscosity, low stress, early-Earth has been a long-standing puzzle for geologists.
Adam Beall, Katie Cooper and I have recently proposed that cratons were made by the catastrophic switching on of plate tectonics. An event in which the stresses were larger than they have ever been in the intervening 3 billion years (Beall et al, 2018).
Background
The theory of plate tectonics describes how rigid plates move on the Earth’s surface but this really only applies to the oceanic plates. The continental crust is generally a great deal weaker and can crumple or stretch in response to movements of the oceanic plates forming mountain belts, rifts and low-lying basins.
Some of the oldest parts of the continental crust are an exception to this generalisation. These are regions that have experienced very little tectonic deformation in several billion years of existence. These cratons are thought to represent regions of greater strength and this contributes to their longevity.
There is evidence that the deep lithosphere is as ancient as the crust and is anomalously thick and buoyant (e.g. Jordan,1975, O’Reilly et al, 2001, Cooper et al, 2013, 2016). We also think that the cratons formed from cool, thin lithosphere in the time before plate tectonics began and then thickened and strengthened to the point where they became effectively indestructible.
The problem with this idea has always been to explain how the hot, weak interior of the young Earth could generate enough stress to thicken strong lithosphere. Alternatively, if the lithosphere was weak too, what stopped it from falling apart by gravitational spreading while it cooled and ‘hardened’?

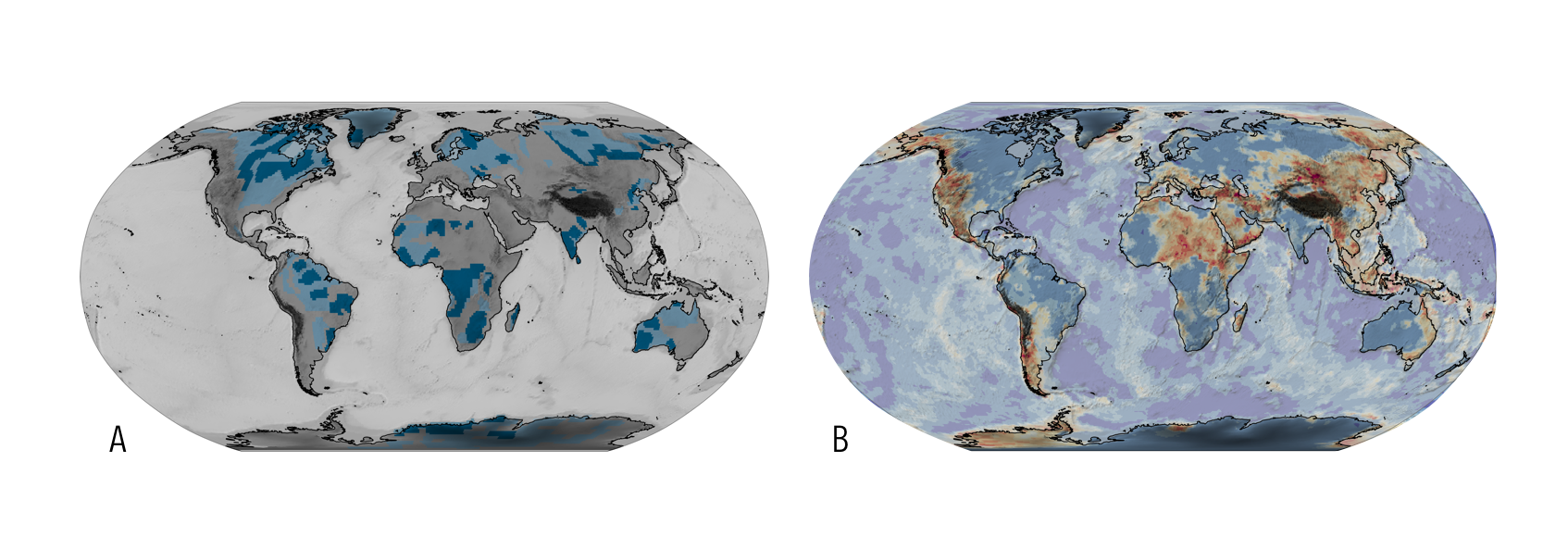

(A) Map of the Archean Cratonic crust (dark blue) identified from the Crust 1.0 and paleoproterozoic crust in pale blue. (B) A map of the relative thickness of crust to lithosphere (also from Crust 1.0) which tends to pick stable zones in blue shades from deforming zones in red.
New views
Recent models of the very early Earth showed that the planet could have been cooling rapidly by heat-pipe volcanism (just like Jupiter’s moon Io). Massive volcanism is enough to prevent plate tectonics from switching on, but when the Earth does cool down enough for the eruptions to slow, a catastrophic transition begins. Short, violent pulses of lithospheric foundering and overturn occur before steady plate motions take over (e.g. see Moore & Webb, 2014, Rozel et al. 2017).
We modeled what happens to the strong and buoyant material of the heat-pipe lid during these early-Earth overturn events. We found that the lid was crumpled up into large islands of thick, buckled and very strong lithosphere by the overturn of the cold, thick, stagnant boundary layer. Once the model Earth settled down to a more sedate form of steadily moving plates, the stresses never reached a level that could deform these remnants of the pre-plate-tectonic state.

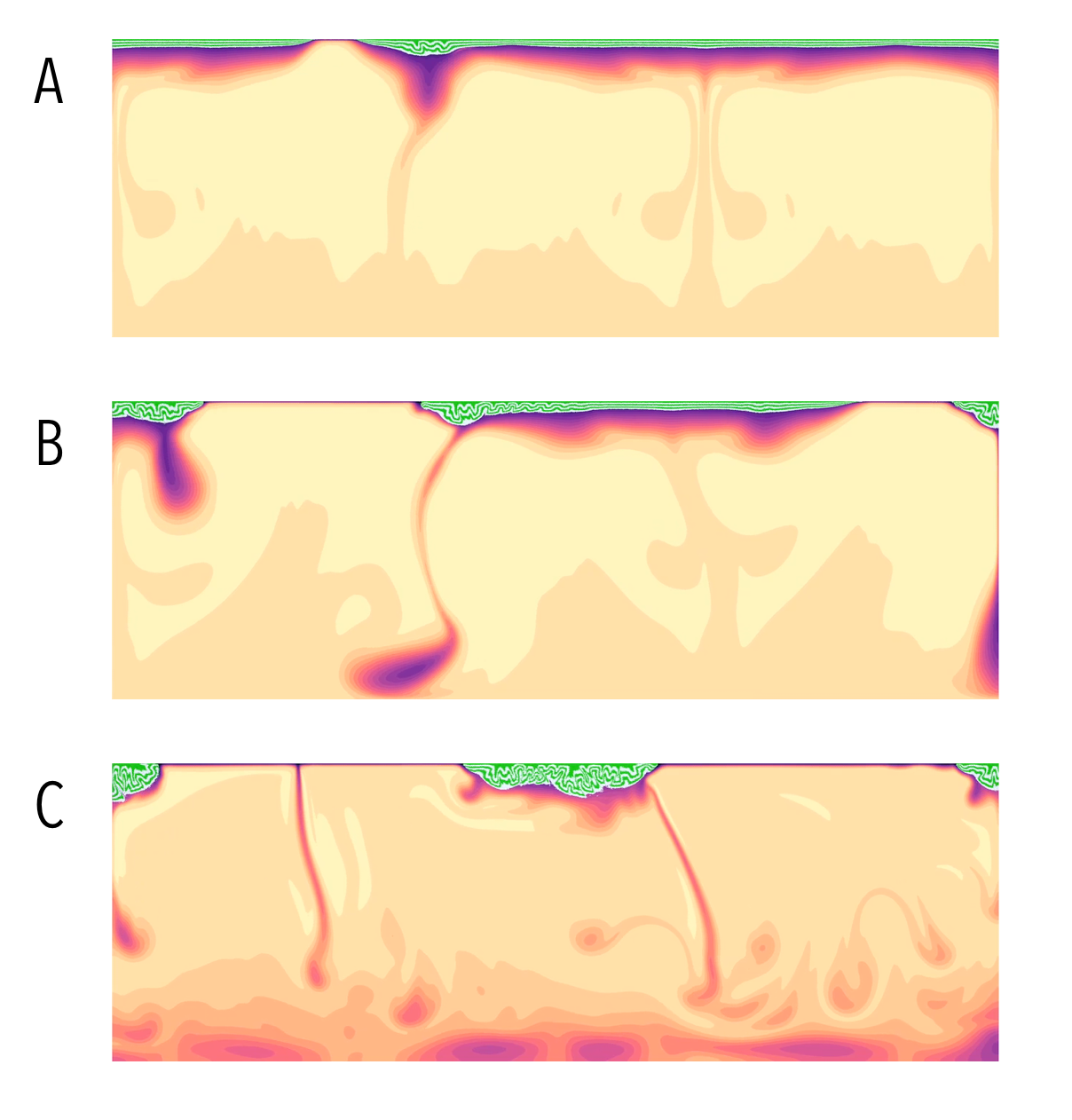

Snapshots from this movie that show the initial failure of the cold lid after the heat-pipe mode stops (A), followed by repeated sloughing off of the cold boundary layer in (B) and a slow approach to steady state in (C) where the thick, crumpled lithosphere is shuffled around without deformation.
In the figure above, the green and grey stripes were initially horizontal layers at the upper surface of the planet and are folded by the foundering of the thick boundary layer. In these simulations, the boundary layer is shed in less than an overturn time. Each model craton experiences a few, closely spaced, shortening events the create a thick pile of material with intricate internal structures not unlike those seen in seismic images that have been attributed to early subduction (Bostock et al, 1998).
The model cratons form cold and from material that was originally crystallised at shallow depth. The formation is also a time of temperature inversion in the mantle: cool material is dumped at the core mantle boundary resulting in higher-than-average core heat flux. The phase of mobile-lid convection that follows this (analogous to plate tectonics in this kind of model) has high velocities near the surface, thin oceanic lithosphere and low stresses. In this environment the cratons are safe from harm and this remains true to the present day despite lithospheric thickness and ambient stresses gradually creeping higher.
